| Evidenziare: | 6'' 152.4mm Diameter,high-strength pp center core,integral pp cage and polyester mesh |
||
|---|---|---|---|

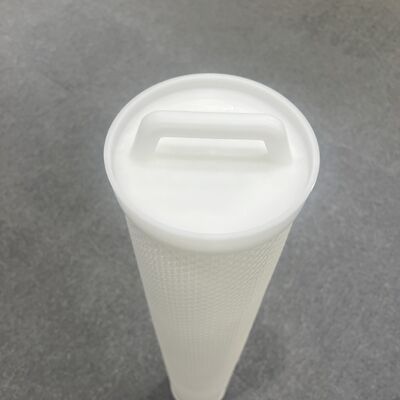

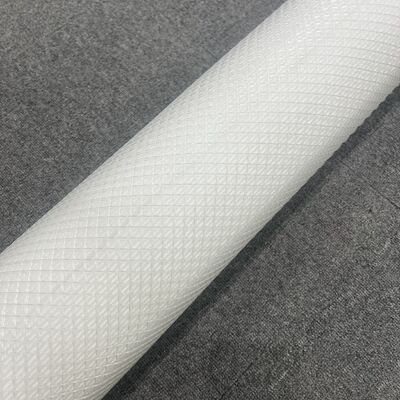

PHFK series high flow filter cartridge is made of diameter 6"(152mm) and PP pleated design, with high-strength pp center core, outside to inside flow direction. All connection use thermal welding. Outer cage have two types: integral pp cage and polyester mesh.
| Model | Filter Medium | Support/Drainage | End Caps | Seals Material |
|---|---|---|---|---|
| PP | Deep Pleated PP | Polypropylene | Glass Fiber Reinforced Polypropylene | NBR, Silicone, EPDM, FKM |
| PET | Pleated Polyester | Polyester | Glass Fiber Reinforced Polypropylene |
| OD | 6" (152mm) |
|---|---|
| Length | 40" (1016mm) |
| Micron | 1um, 5um, 10um, 15um , 20um, 40um, 70um, 100um |
| Max. operating temperature | PP type: 82℃ |
| PET type: 121℃ | |
| Max. operating differential pressure | PP type: 3.44bar@82℃ |
| PET type: 3.44bar@121℃ | |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
| Max. flow rate | 70m3/h |
| Filtration direction | Outside to inside |
Established: 2016/04~ now
Development status: It has built a series of testing equipment systems including particle counter, inductively coupled plasma mass spectrometer, IC ion chromatography, benchtop scanning electron microscope, circulation washing device, aperture distribution meter, etc. In the future, it will gradually develop into a high-end precision filtration key laboratory such as microelectronics and life science.
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
