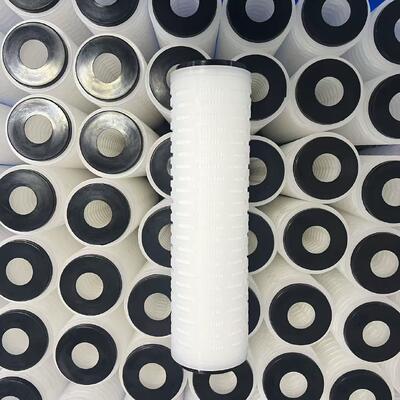

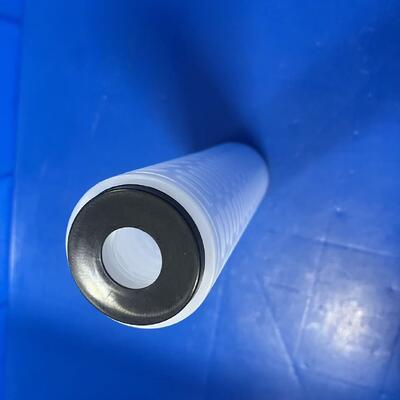

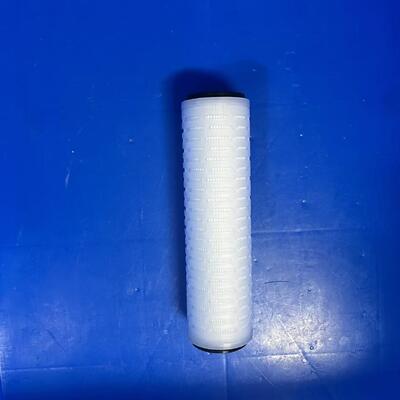

10inch PFA Series All-Fluoropolymer Filter Cartridge
The PFA Series Perfluorinated filter cartridge features a hydrophilic PTFE filter membrane with all components—outer cage, center core, and end caps—constructed from PFA material. This design provides exceptional chemical corrosion resistance and low precipitation characteristics, ensuring highly efficient, long-term filtration of strong corrosive acids, alkalis, and organic solvents.
Applications
- Food and Beverage: Beer, wine filtration; juice and soda filtration; oral liquid filtration; additives, oil filtration
- Water Treatment: Urban water supply, industrial water filtration; power plant condensate filtration
- Metal Processing: Cutting fluid and coolant filtration; lubricating oil filtration
- Fine Chemicals: Catalyst filtration; cosmetics raw materials and finished products filtration; chemical auxiliary filtration
- Petrochemical Industry: Aviation kerosene filtration; diesel and fuel filtration
Specifications
| Filter Media |
PFA:PTFE (Hydrophilic) |
| Support/Drainage |
PFA |
| Cage/Core/End Cap |
PFA |
| Maximum Operating Temperature |
170ºC |
| Maximum Operating Differential Pressure |
4bar/21ºC, 2.4bar/80ºC |
Biological Safety
- Every 10 inches of dissolved matter: Less than 30mg/10"
- Less than 0.25EU/ml/10"
Manufacturer Information
Shanghai Pullner Filtration Technology Co., LTD.
Established: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, and more.
Domestic Offices in China
Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China
Global Branches and Offices
UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)
Certification
Frequently Asked Questions
Q1: What is the brand name of this product?
A: The brand name is PULLNER.
Q2: What is the model number of this product?
A: The model number is PFA.
Q3: Where is this product manufactured?
A: This product is made in China.
Q4: What is the main function of this product?
A: The main function of this product is to filter beverages and various industrial fluids with excellent chemical resistance.
Q5: What is the recommended usage time for this product?
A: The recommended usage time for this product is 6-12 months, depending on application conditions.
