PLGF Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material High Dirt Holding Capacity and Inherent Adsorption Effect

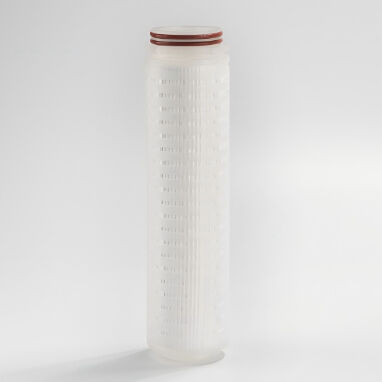

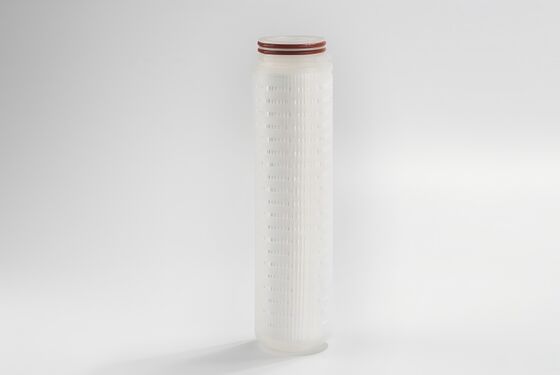

Grande immagine : PLGF Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material High Dirt Holding Capacity and Inherent Adsorption Effect

Dettagli:

Luogo di origine:	Cina
Marca:	PULLNER
Certificazione:	FDA/ISO 9001/ISO 14001
Numero di modello:	PLGF

Termini di pagamento e spedizione:

Quantità di ordine minimo:	10
Prezzo:	To be negotiated
Imballaggi particolari:	Singolo confezionato in scatola di cartone dopo il sacchetto di plastica.
Tempi di consegna:	1 mese
Termini di pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacità di alimentazione:	50 pezzi al giorno

Contatto

PLGF Series Glass Microfiber Filter Cartridge with Ultra-fine Glass Fiber Material High Dirt Holding Capacity and Inherent Adsorption Effect

descrizione

Evidenziare:

Ultra-fine Glass Fiber Material Glass Microfiber Filter Cartridge

High Dirt Holding Capacity Glass Microfiber Filter Cartridge

Inherent Adsorption Effect Glass Microfiber Filter Cartridge

PLGF Series - Glass Microfiber Filter Cartridge for Liquid

The PLGF series filter cartridge is constructed from ultra-fine glass fiber material, offering high dirt holding capacity and inherent adsorption properties. Designed for filtering liquids containing colloids, grease, and high particle content, this glass fiber filter cartridge delivers exceptional performance with particle interception efficiency up to 98%.

Key Features

High efficiency filtration with 98% particle interception rate
Low initial differential pressure for optimal flow performance
Large flow rate capacity
Extended service life due to high dirt holding capacity
Effective for liquids containing colloids, grease, and high particle content

Galss Fiber OD2.7" 98% PLGF Liquid Filter Membrane Filter Cartridge

Description

Diameter:	69mm	Length:	10"
Filter Medium:	PP	Filtration Rating:	0.1um-100um
MOQ:	1 Piece	Delivery Time:	1 Month
Sealing Material:	Silicone/Viton/PEP/EPDM	Max. Operating Temperature:	80℃
Max. Operating Different Pressure:	4bar/21℃
Highlight:	PLGF liquid filter cartridge , 2.7" PP Filter Cartridge , PLGF membrane filter cartridge

Ordering Information

PLGF 0500 10 C1 E

Series	Micron		Length		End Cap Type		Seal Material
PLGF	0010	=0.1μm	05	=5"	C1	=226/Spear	E	=EPDM
	0020	=0.2μm	10	=10"	C3	=222/Spear	S	=Silicone
	0045	=0.45μm	20	=20"	C5	=222/Flat	V	=Viton
	0100	=1.0μm	30	=30"	C6	=226/Flat	P	=FEP
	0300	=3.0μm	40	=40"	C9	=DOE
	0500	=5.0μm
	1000	=10μm

PLGF Liquid Filtration Glass Fiber Membrane Filter Cartridge

The PLGF series filter cartridge is made of ultra-fine Glass fiber material, has high dirt holding capacity and inherent adsorption effect. It is especially suitable for filtering liquids containing colloids, grease and high particle content. The glass fiber filter cartridge has good particle interception efficiency up to 98%, and low initial differential pressure, large flow rate, and long service life.

Material Construction

Filter media	Ultrafine Glass fiber
Support/Drainage	Polypropylene
Cage/Core/End Caps	Polypropylene
Seal Material	EPDM, Silicone, Viton, FEP

Performance

Filtration rating

0.1μm, 0.2μm, 0.45μm, 1μm, 3μm, 5μm, 10μm

Maximum Operating Temperature

80℃

Maximum Operating Differential Pressure

4bar/21℃

2.4bar/80℃

Chemical Compatibility

Acetic Acid	R	Benzene	R
Ethyl Alcohol	R	Oil	R
KOH	NR	Aceton(e)	R
Ethyl acetat(e)	R	Diethyl (E)ther	R

NR:No Recommend R:Recommend
